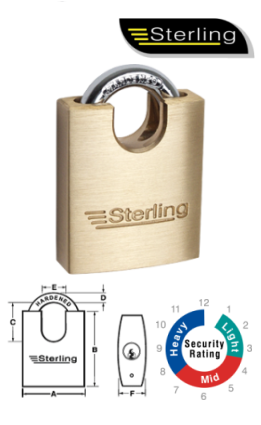

 Closed Shackle PadlocksClose Shackle padlocks are similar to regular bodied padlocks, but have the added feature of raised shoulders on the lock body to protect the shackle.
This added feature offers greater protection from bolt cropping and attack.
Key Features of these locks are:
- Solid brass body and cylinder
- Hardened steel chrome plated shackle
- Double ball bearing locking
- Anti-pick mushroom pins
- Nickel plated brass keys
We offer close shackle padlocks in a range of sizes for a diverse range of applications.
| Size | Dimensions (mm) | Double
Locking | Hardened
Shackle | Pin
Tumblers | Security
Rating | | A | B | C | D | E | F | | 40mm | 39.5 | 47.5 | 17 | 6.4 | 14 | 14.5 | Y | Y | 5 | 4.5 | | 50mm | 50 | 65 | 21 | 8.7 | 19 | 16.9 | Y | Y | 5 | 5.5 | | 60mm | 59.5 | 72 | 27.5 | 9.5 | 24.6 | 18.8 | Y | Y | 5 | 6 |
|
